Máy Kiểm Tra Độ Bền Uốn Vật Liệu Nhiệt Độ Thấp Gester Model GT-KB08C

GT-KB08C

Model: GT-KB08C

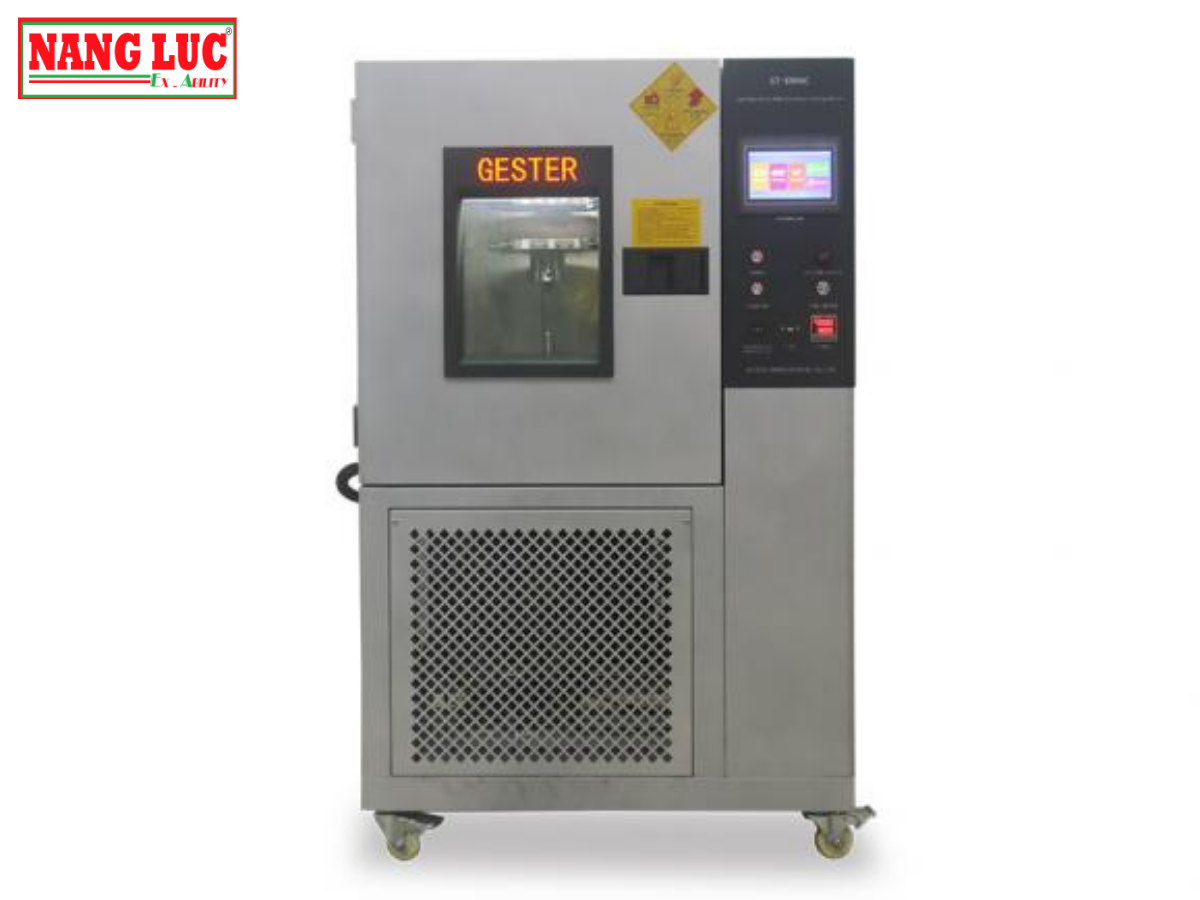

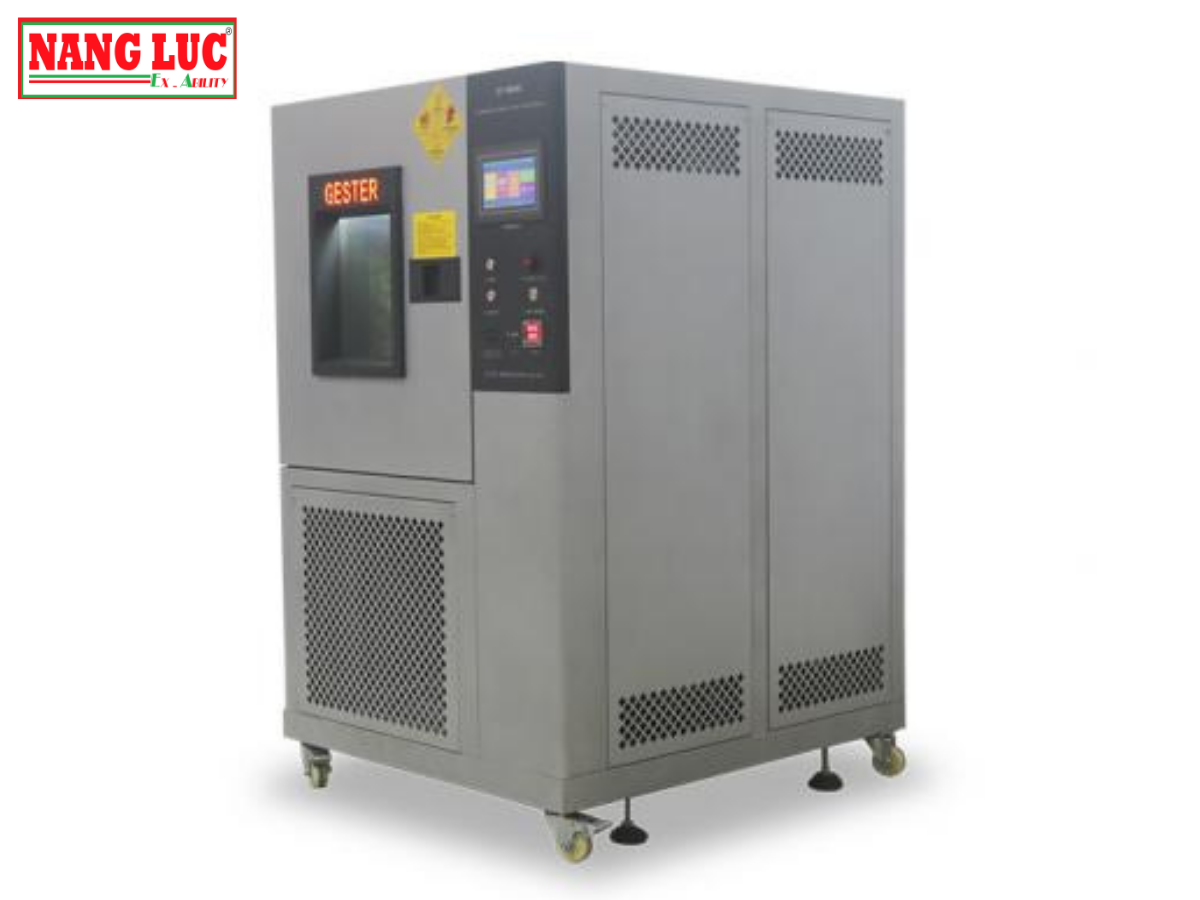

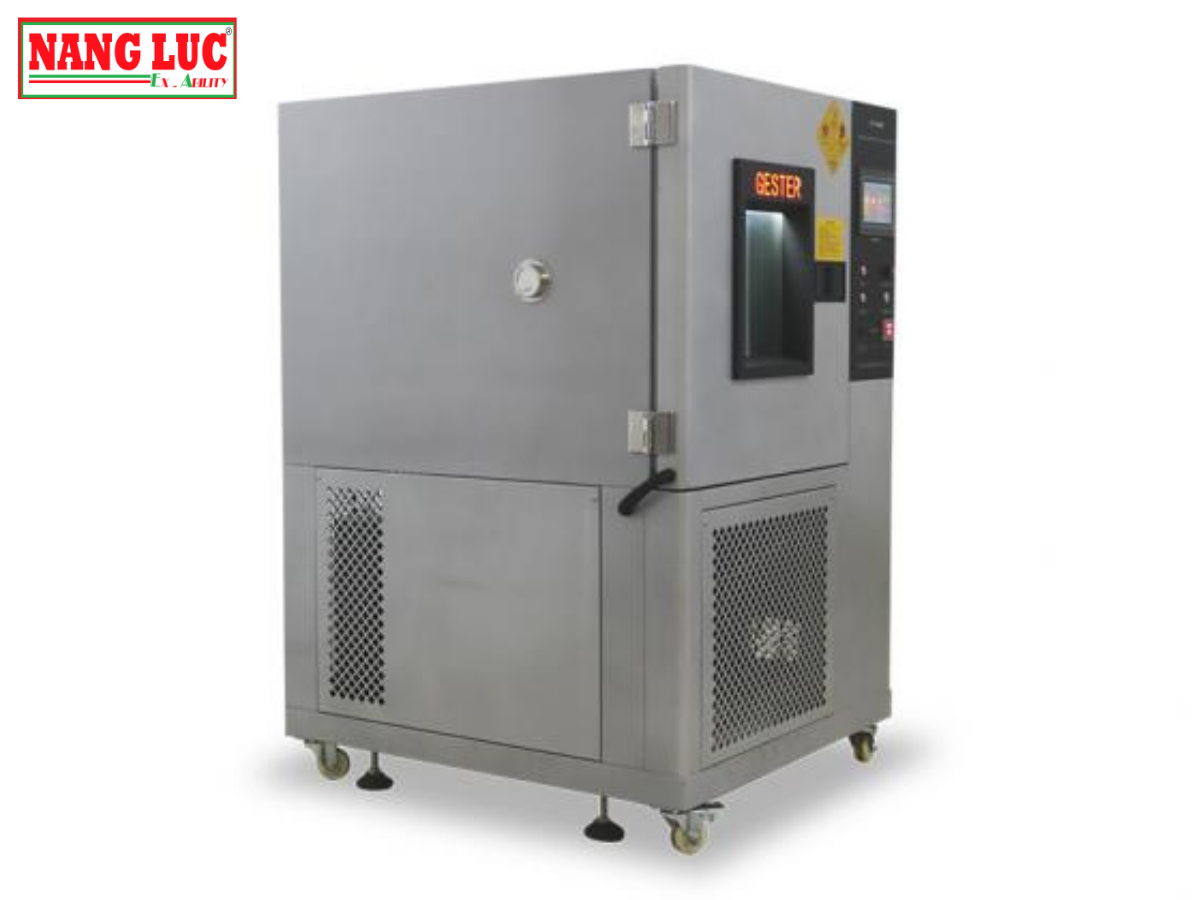

Máy Kiểm Tra Độ Bền Uốn Vật Liệu Nhiệt Độ Thấp (Low Temperature DeMattia Flexing Tester) Gester Model GT-KB08C

Liên hệ

Tổng quan

Tổng quan

Máy Kiểm Tra Độ Bền Uốn Vật Liệu Nhiệt Độ Thấp (Low Temperature DeMattia Flexing Tester) Gester Model GT-KB08C

GT-KB08C

Application of GT-KB08C

DeMattia Flexing Tester To determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials. And inspect its flex cracking resistance, resistance to cracking and crack growth degree by repeatedly flexing in certain times and stroke.
Standards:
ISO 7854 – Method A, ISO132,133, BS-903-A10 , EN 511-5.2 , ASTM D813, D430,
GB/T13934,13935, JIS-K6301, GB/T 12586 – Method A

Feature

Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
Low Temperature Flex Cracking Tester With vacuum glass observation window, more effective to observe the testing situation.

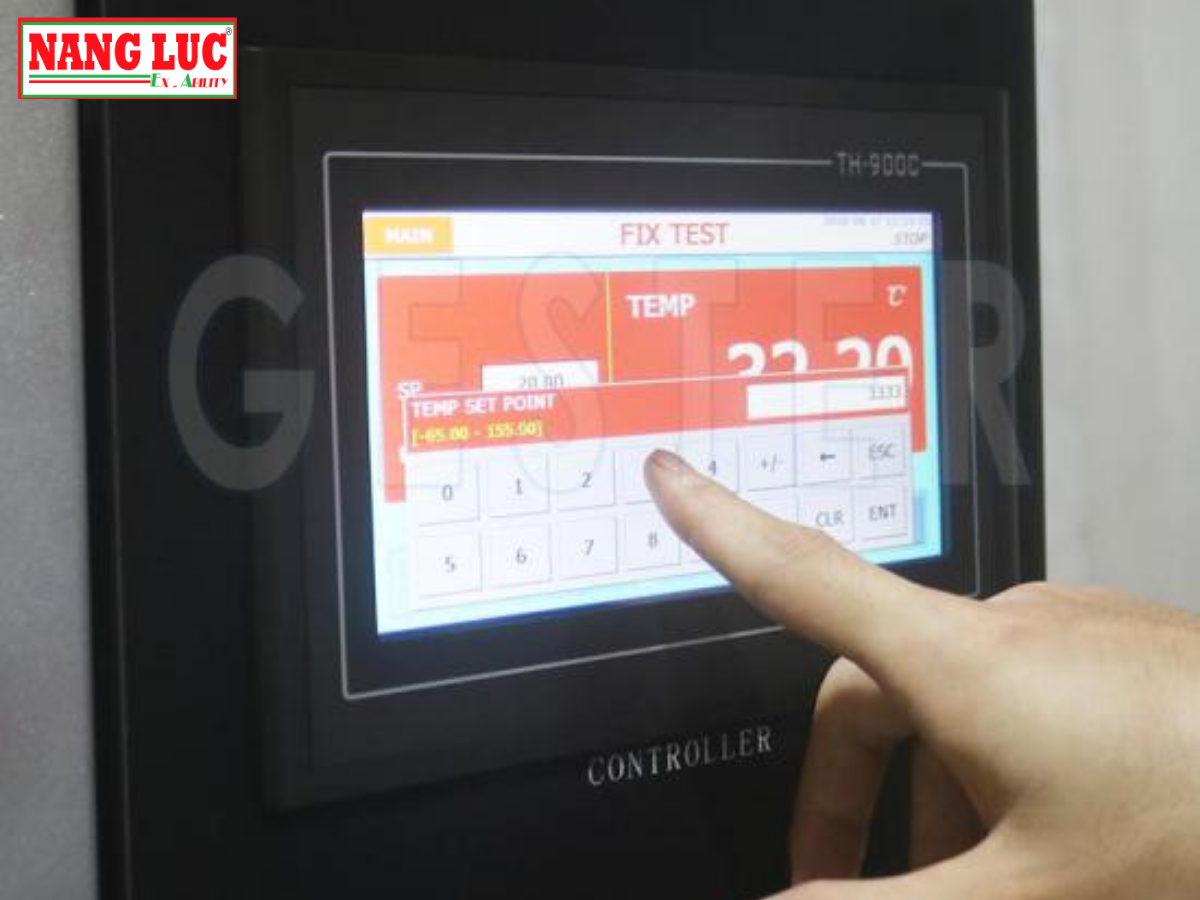

Temperature control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture grips.
The flexing system has separate controller with function of power off memory and automatic stop when test done.

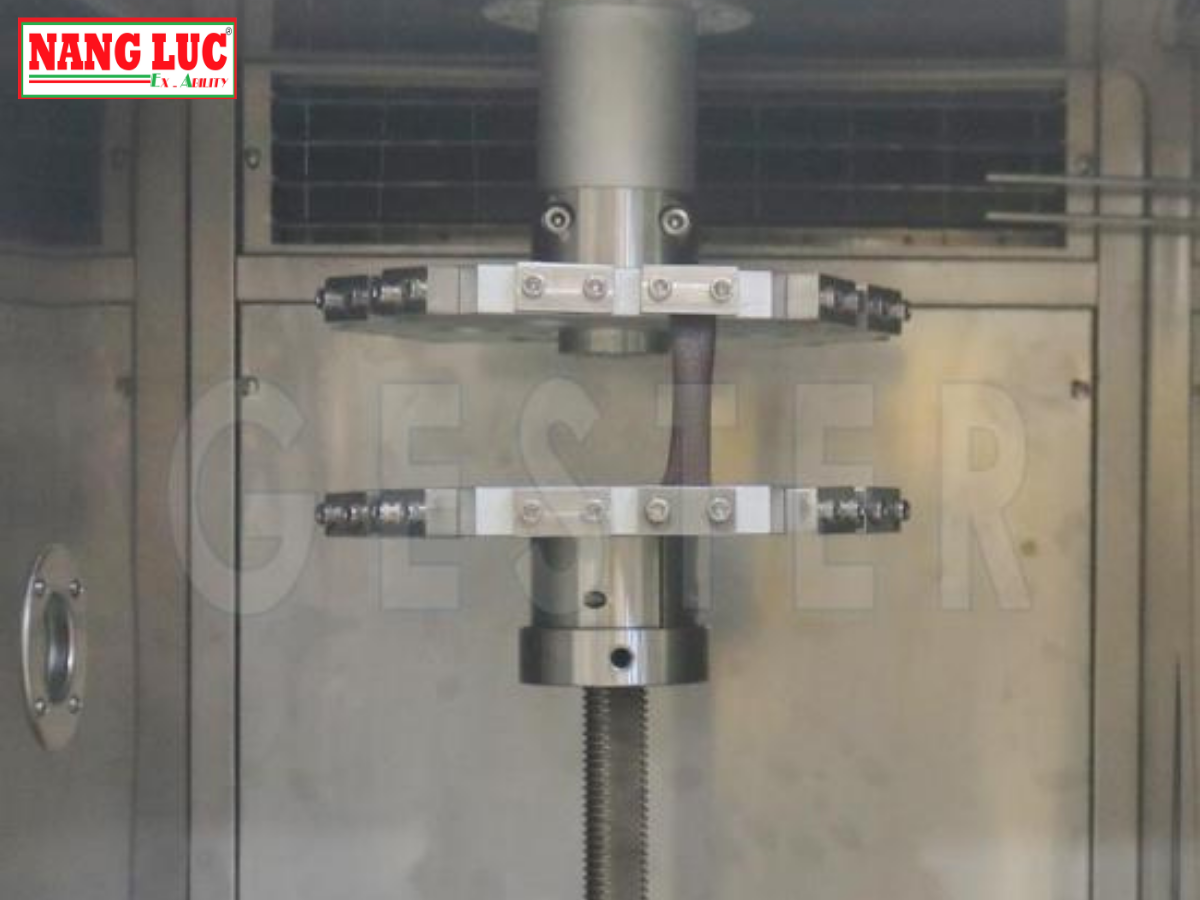

All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.

Hãy liên hệ với Năng Lực Company ngay để được tư vấn chuyên sâu và nhận các ưu đãi hấp dẫn nhất thông qua hotline/zalo: 0976.299.749!
