Máy Đo Lực Ma Sát Băng Keo Thwing-Albert Model FP-2260

KHÁCH HÀNG CHÍNH

Máy Đo Lực Ma Sát Băng Keo Thwing-Albert Model FP-2260

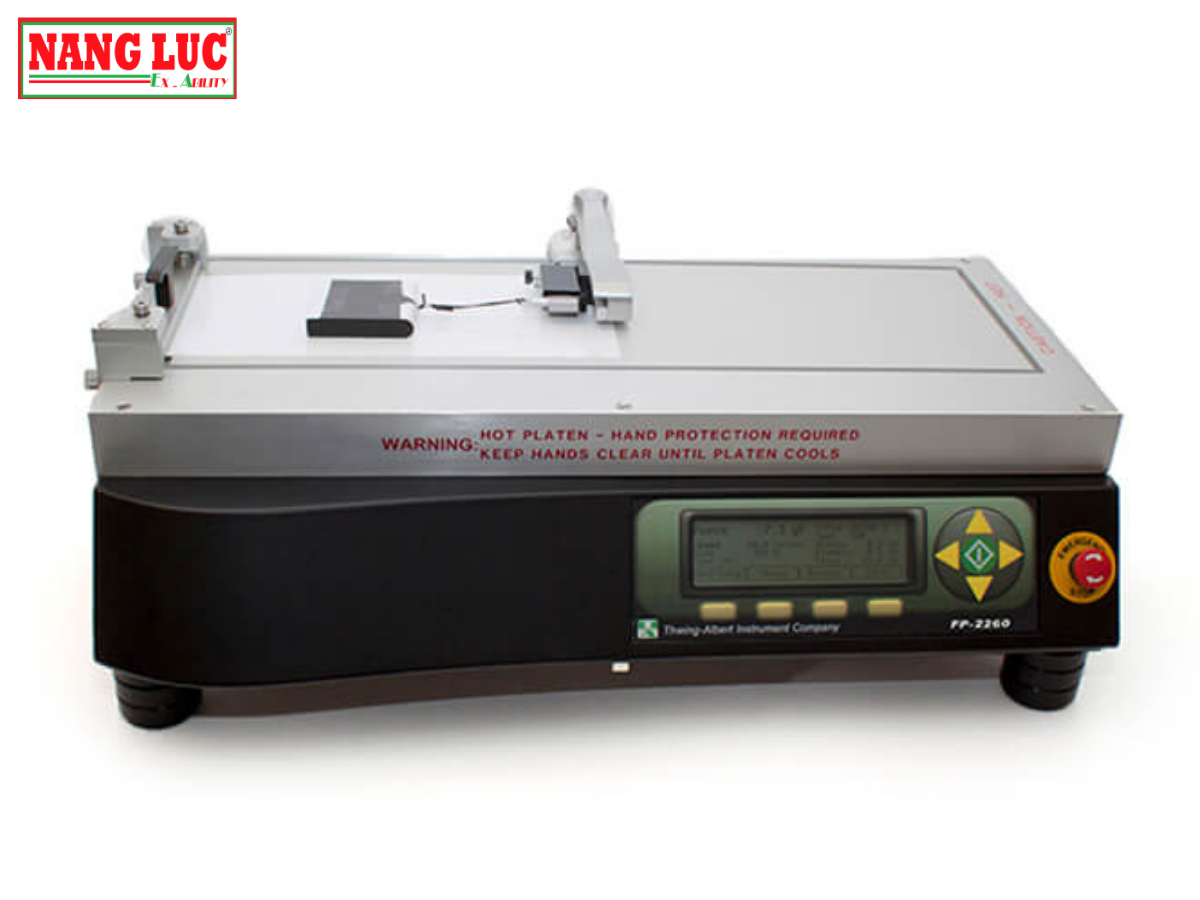

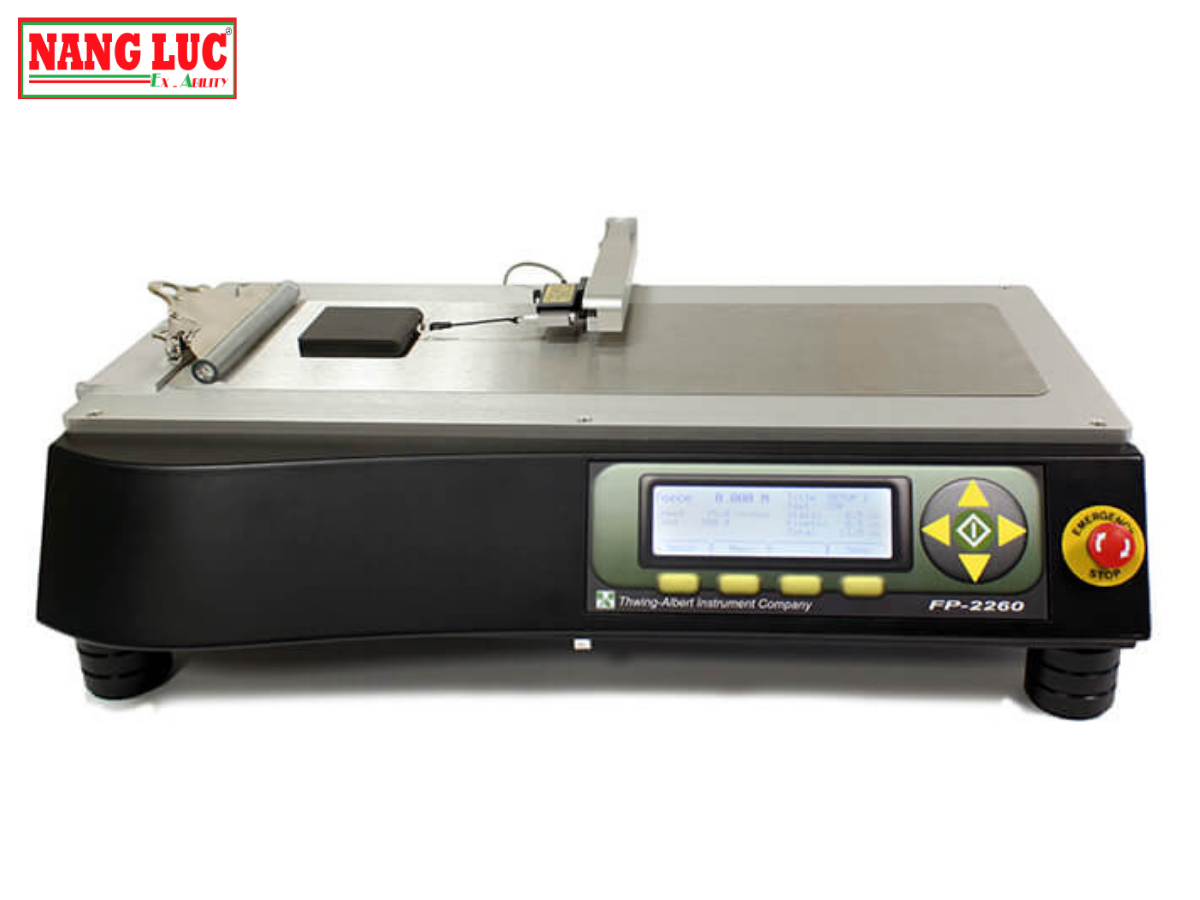

FP-2260 Friction/Peel Tester

Model: FP-2260 Friction/Peel Tester

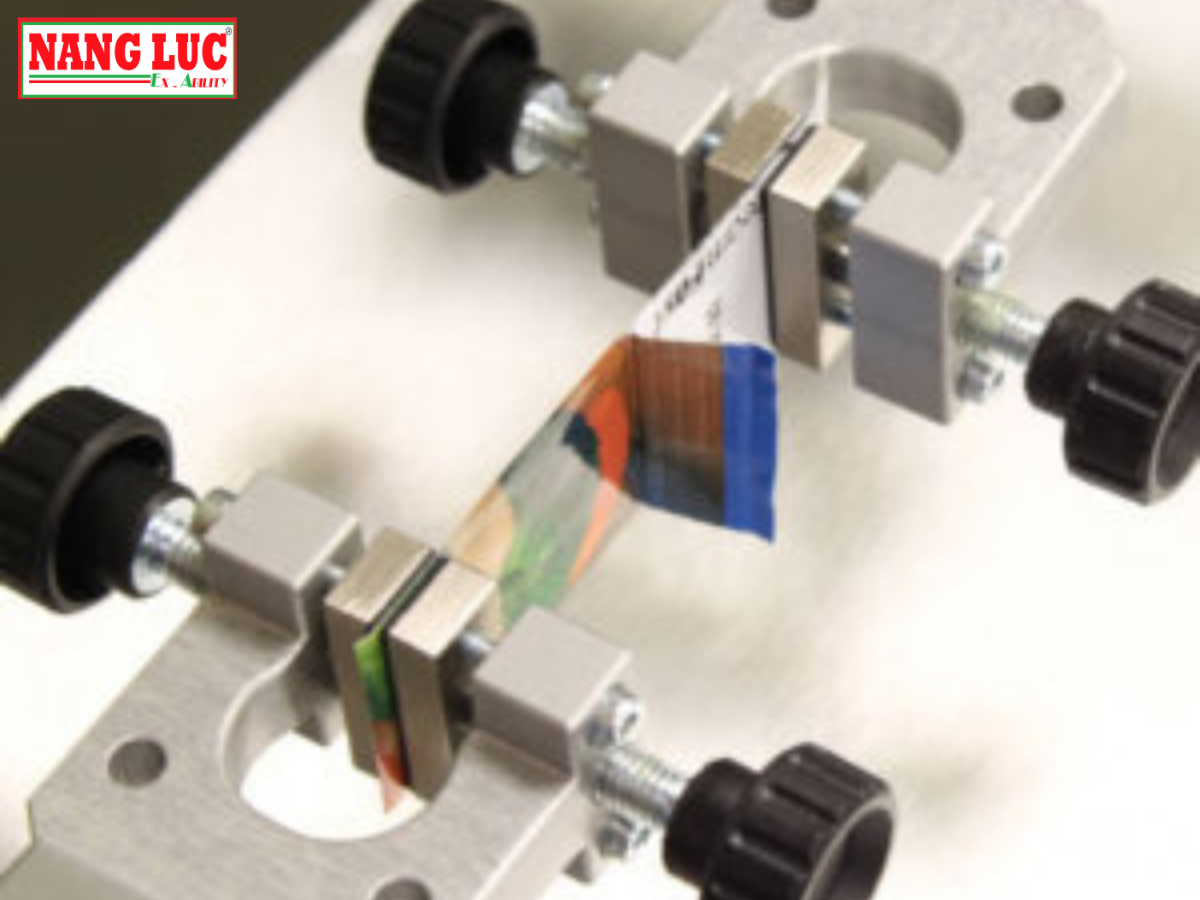

FP-2260 COF Tester (Coefficient of Friction Tester) / Peel Tester provides more information with fewer keystrokes and offers the capability to run the machine in five languages. It also provides the ability to create, save, and password-protect test setups. The COF test mode can be configured to measure the static and kinetic coefficient of friction as well as slide angle. The Peel Tester mode can test the seal strength, and peel properties of plastic film, paper, paperboard, adhesives, corrugated/cardboard, labels, and packaging materials. The Peel Tester can be configured to perform 180° peel tests, 90° peel tests, and T-peel tests.

Liên hệ

Tổng quan
Thông số kỹ thuật

Tổng quan

Máy Đo Lực Ma Sát Băng Keo Thwing-Albert (Friction/Peel Tester) Model FP-2260

Features Of FP-2260

Multifunctional membrane keypad

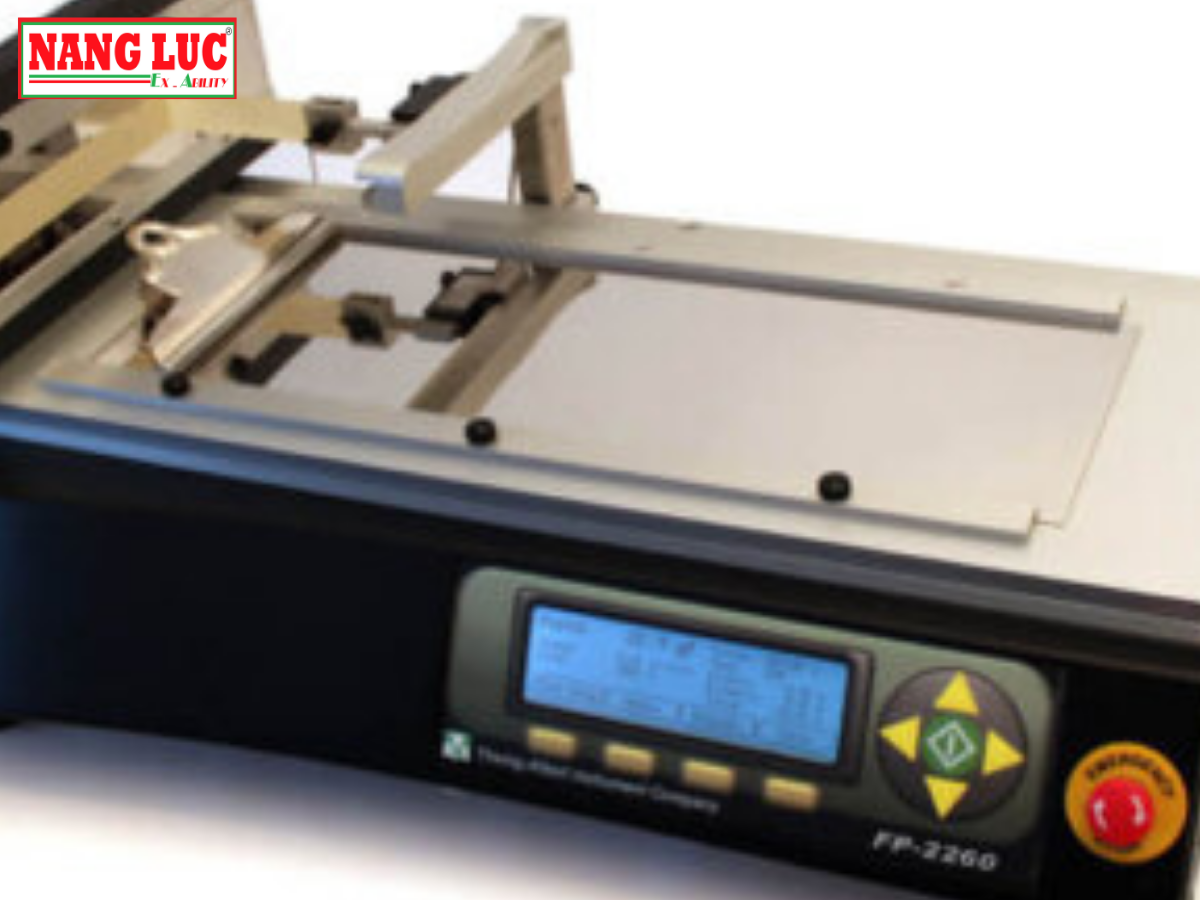

Easy to read display (240 pixels x 64 pixels)
Automatic load cell recognition
Interchangeable .5kg, 1kg, 2kg, 5kg and 10kg load cells
Adjustable crosshead and load cell (Vertically and Horizontally)
Automatic Return of the crosshead
14″ of Crosshead travel
Store 128 tests each for COF, Peel, and Tensile
USB and RS-232 Data Communication Port
Available test area 225mm x 350mm
Electronic over travel switches
Selectable force units [g, kg, lbs, oz, N]
Preset industry-standard test method storage
Ability to save customized test setups
Industry standards:
- ASTM D1894 (COF for Plastics)
- ASTM D4521 (COF for Corrugated/Fiberboard)
- ASTM D2534 (Coefficient of Kinetic Friction for Wax Coatings)
- ASTM D6862 (Standard Test Method for 90 Degree Peel Resistance of Adhesives)
- ASTM D6252 (Standard Test Method for Peel Adhesion of Pressure-Sensitive Label Stocks at a 90° Angle)
- ASTM D3330 (Peel Adhesion for Pressure Sensitive Tape 180°)
- ASTM D1876 (Standard Test Method for Peel Resistance of Adhesives – T-Peel Test)
- ASTM F88 (Seal Strength for Flexible Barrier Material)
- AFERA: 4001 P11
- FINAT: FTM 1-6, 10, 11
- ISO 8295 (COF for Plastics)
- PSTC: 101 (A, B, C, D, E, F), 4, 15, 55
- TAPPI T816 (COF for Corrugated and Paperboard)
- TAPPI T549 (COF for Uncoated Writing & Printing Paper)
- TLMI: L-IA1, L-IA2, L-IA3
- and more…

Hãy liên hệ với Năng Lực Company ngay để được tư vấn chuyên sâu và nhận các ưu đãi hấp dẫn nhất thông qua hotline/zalo: 0976.299.749!

Thông số kỹ thuật

Force Accuracy	10% to 100% Load Capacity: ±0.25% Measuring Value, Less than 10% Load Capacity: ±0.025% of Load Cell Capacity
Force Resolution	0.1g for all load cells
Force Units	Grams, Kilograms, Ounces, Pounds, Newtons
High Travel Speed	10 to 110 in/min(254 to 2,794 mm/min)
Industry	Adhesives, Corrugated, Foils/Metals, Medical, Nonwovens, Packaging, Paper, Paperboard, Plastic Film, Rigid Plastics
List of Standards	ASTM F88, ASTM D1894, D4521, D3330, TAPPI T816, ISO 8295
Load Cell	.5kg, 1kg, 2kg, 5kg, 10kg (interchangable)
Model Name	FP-2260 Friction/Peel Tester
Power Requirements	110-230 Volts, 50-60 Hz
Software Available	MAP4

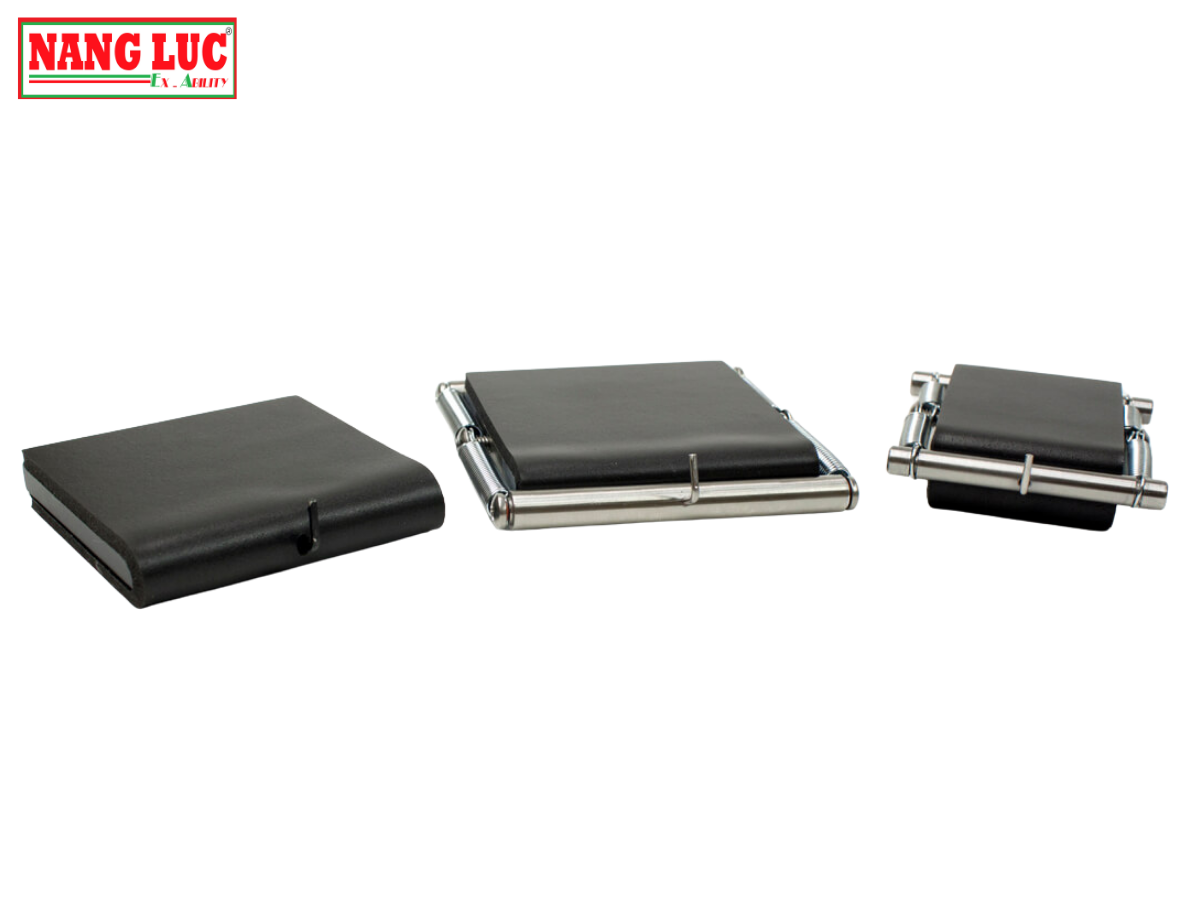

Standard COF Sleds	200gm, 500gm, 1000gm, and 3lb (Other sleds are available. Software accepts variable sled weights.)
Standard Travel Speed	1 to 20 in/min (25.4 to 508 mm/min)
Testing Property	Adhesion, Coefficient of Friction, Peel, Tensile
Test Times	0.1 to 99 seconds- Variable for COF, and Peel
Travel Distance	0.1 to 14.0 in (0.3 to 38 cm)
