Máy Kiểm Tra Lực Bóc Tách Của Băng Keo ChemInstruments Model HSR-2000

KHÁCH HÀNG CHÍNH

Máy Kiểm Tra Lực Bóc Tách Của Băng Keo ChemInstruments Model HSR-2000

HSR-2000

Model: HSR-2000

Liên hệ

Tổng quan
Thông số kỹ thuật

Tổng quan

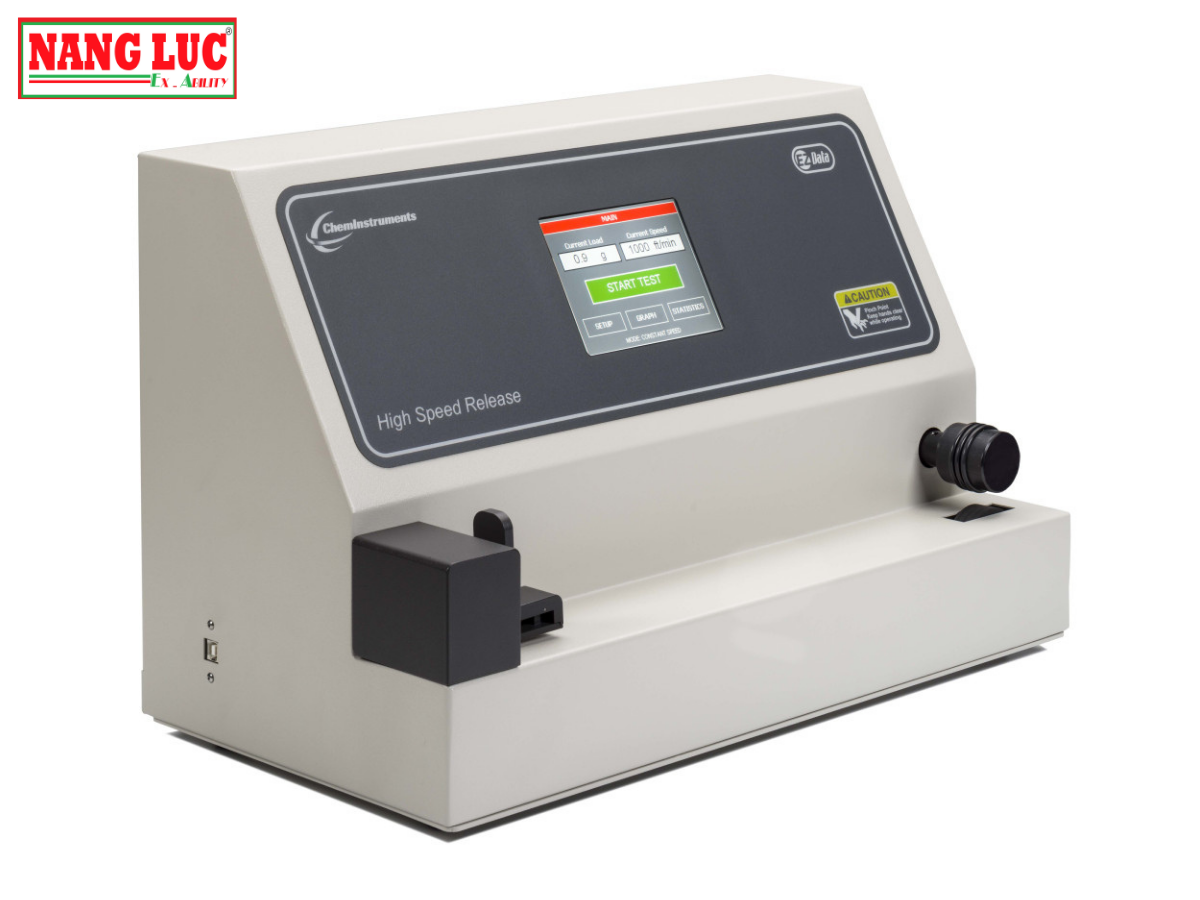

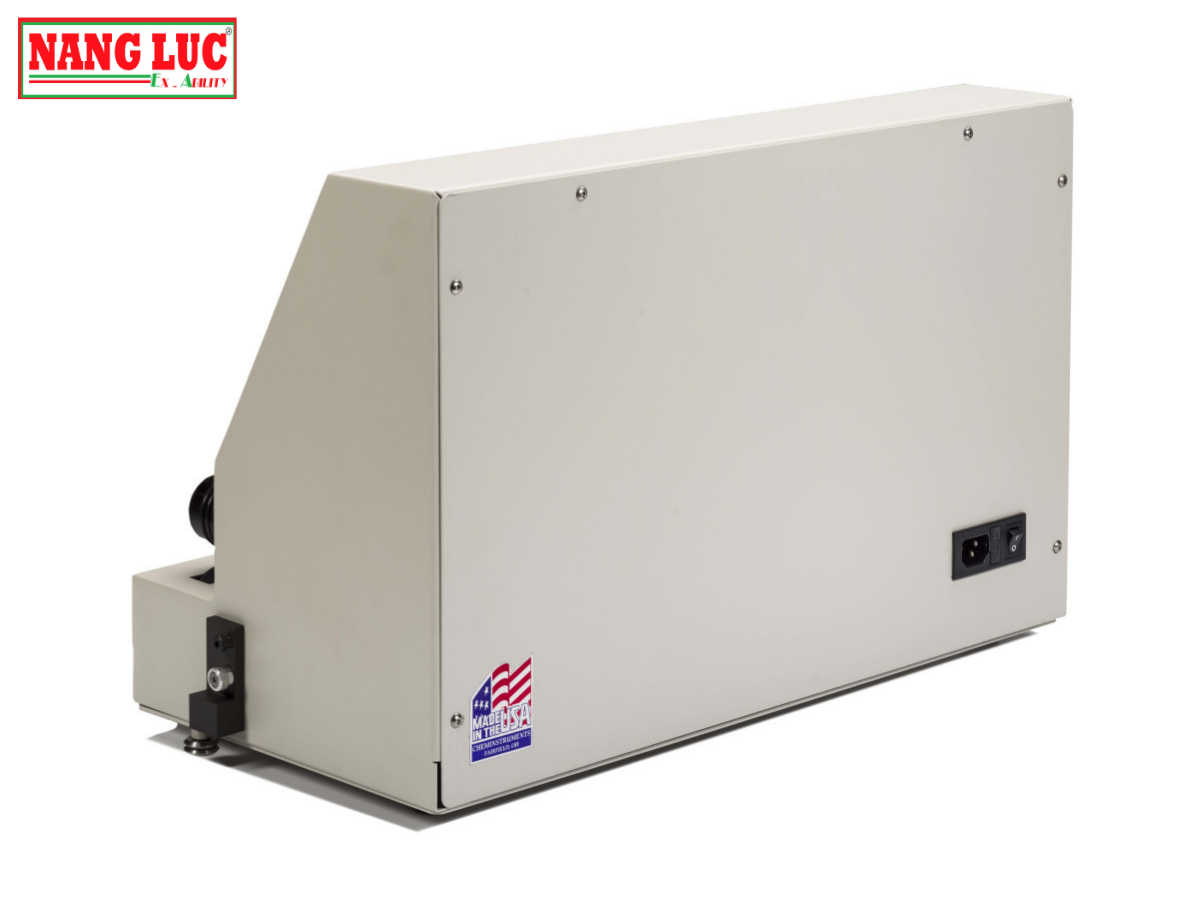

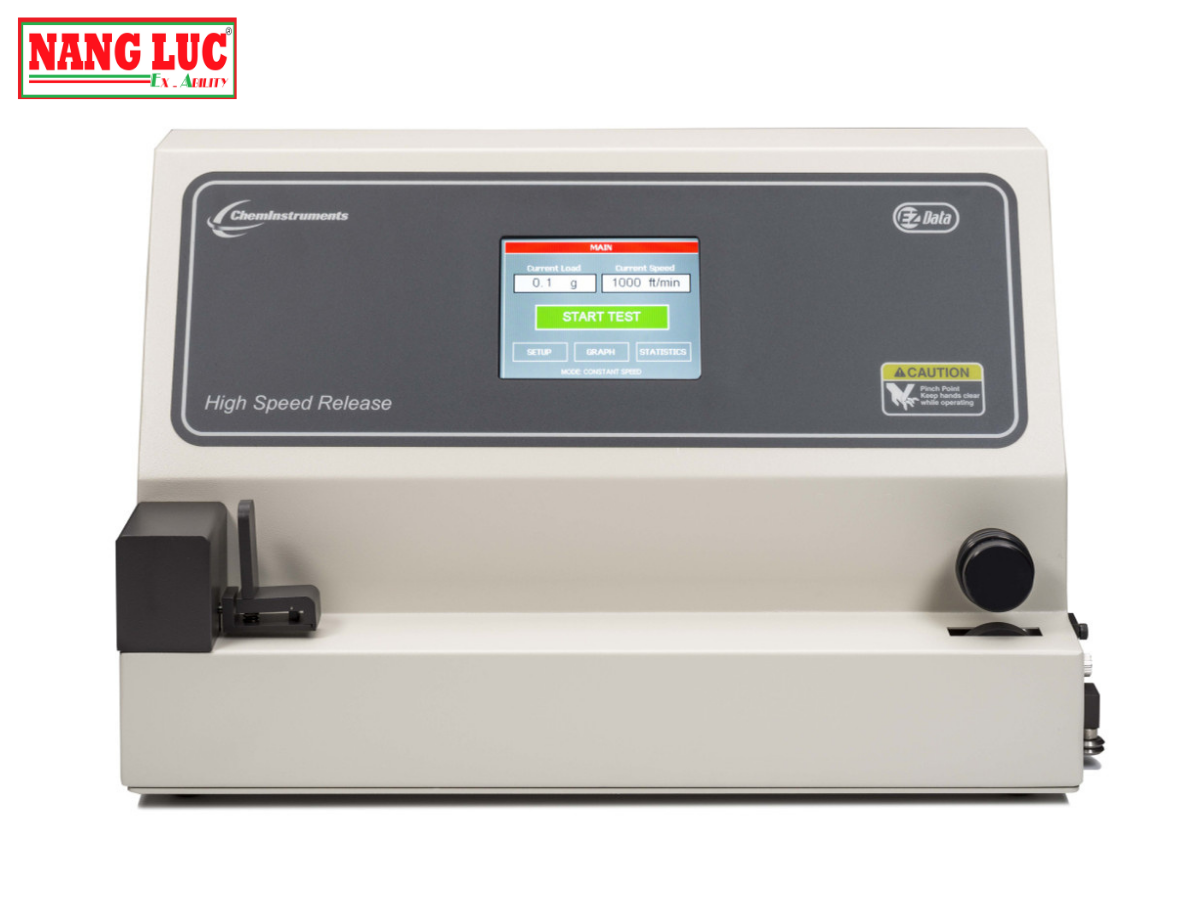

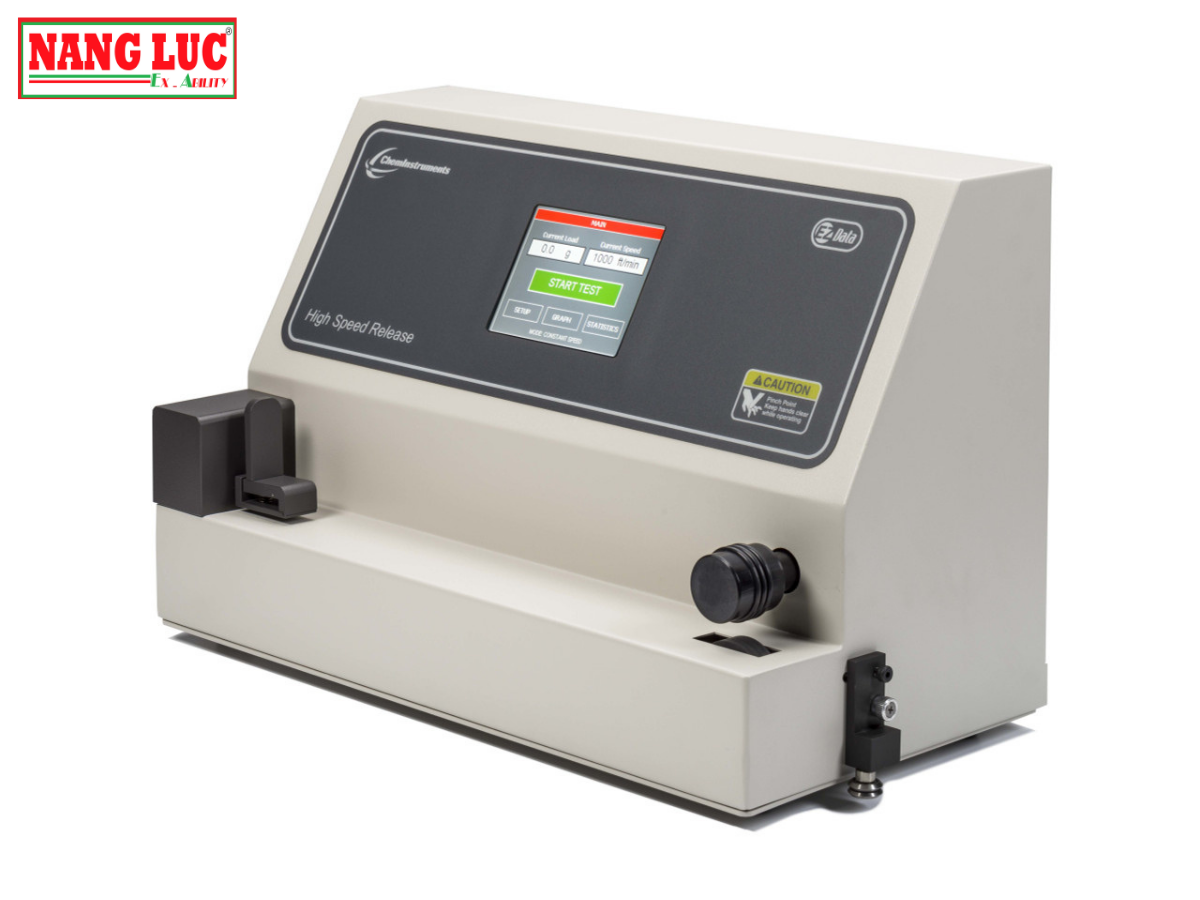

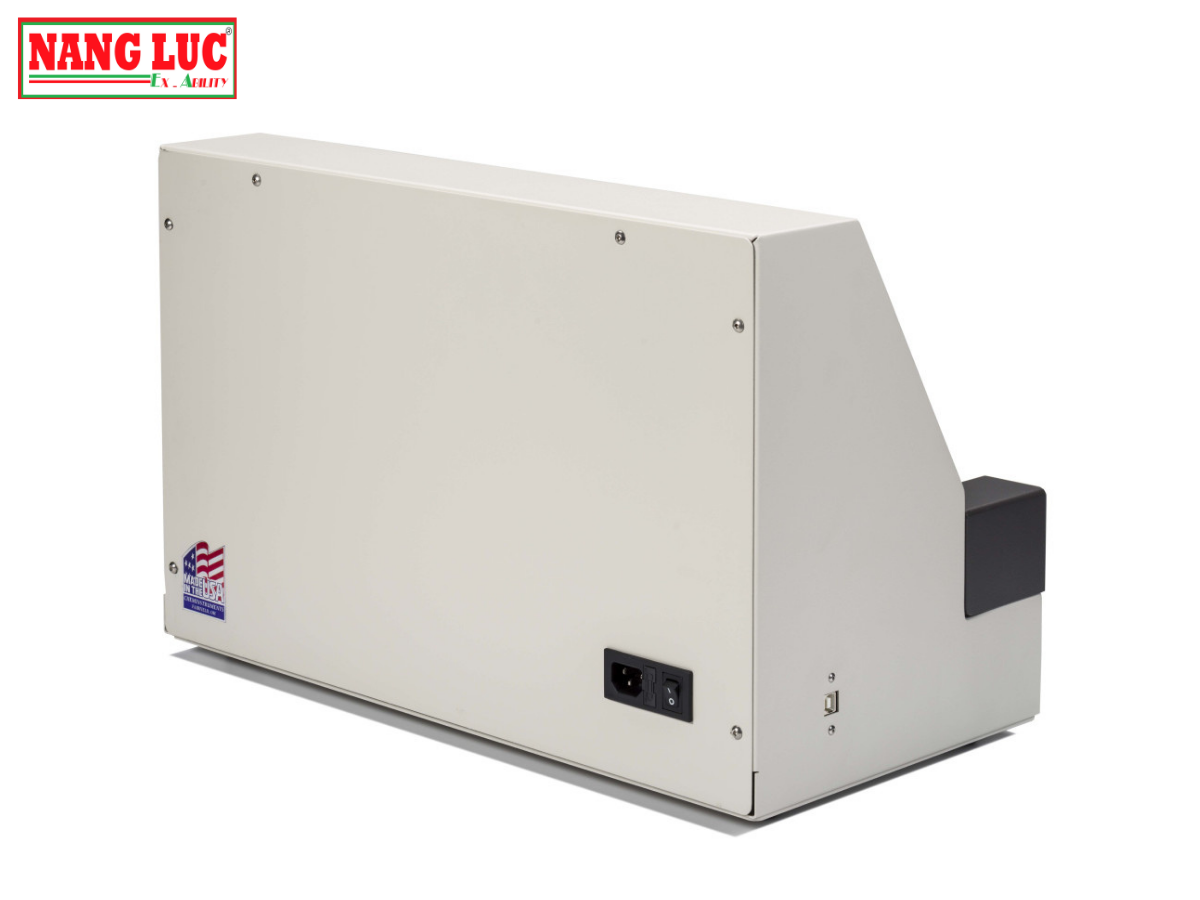

Máy Kiểm Tra Lực Bóc Tách Của Băng Keo (High Speed Release) ChemInstruments Model HSR-2000

HSR-2000

Rugged construction, capable of withstanding the abuse of the production environment
Digital speed control ensures a constant speed regardless of wind-up roll diameter
Selectable speed range from 10 to 400 fpm (3 – 120 mpm)
Accepts rolls up to 3″ wide (75mm) x 12″ OD (300mm) on standard 3″ cores (75mm)
Length counter incorporated into controller to record in either feet or meters
20 pound load cell is included with the machine
Capable of pulling up to 10 pounds (4.5 Kg)
Accurate to ± 0.1% of load cell range
Operating temperature range 32° – 150° F (0° – 70° C)
Capable of stand-alone operation with integrated touch screen display
Data can be downloaded to EZ Data software for complete data management
7 inch touch screen display
Universal Input Voltage from 85-265 VAC (50/60Hz)

Data Acquisition System

The ChemInstruments electronic data acquisition system is a state-of-the-art microprocessor controlled force measurement package that combines accuracy with ease of use. This system simultaneously controls test motion, reads the force of a test from a load cell, displays it and also stores that data in its memory.
Samples at 400Hz, 8 samples are collected, averaged and stored as a data point. A test will generate a data point every 20ms.
Displays a graph of all measured force values upon completion of a test.
Displays the average, high and low measured force results immediately upon completion of a test.
Export data by USB connection to a local PC with our EZ Data software.
Displays test values in grams, kilograms, ounces, pounds or Newtons.

EZ Data

EZ Data Compatible Remote setup, operational control and enhanced data collection are all possible when coupled with our EZ Data management software. This application requires an external PC. (See more information about the EZ Data product).
