Máy Kiểm Tra Độ Bám Dính Lớp Phủ ChemInstruments Model AR-2000

Tổng quan

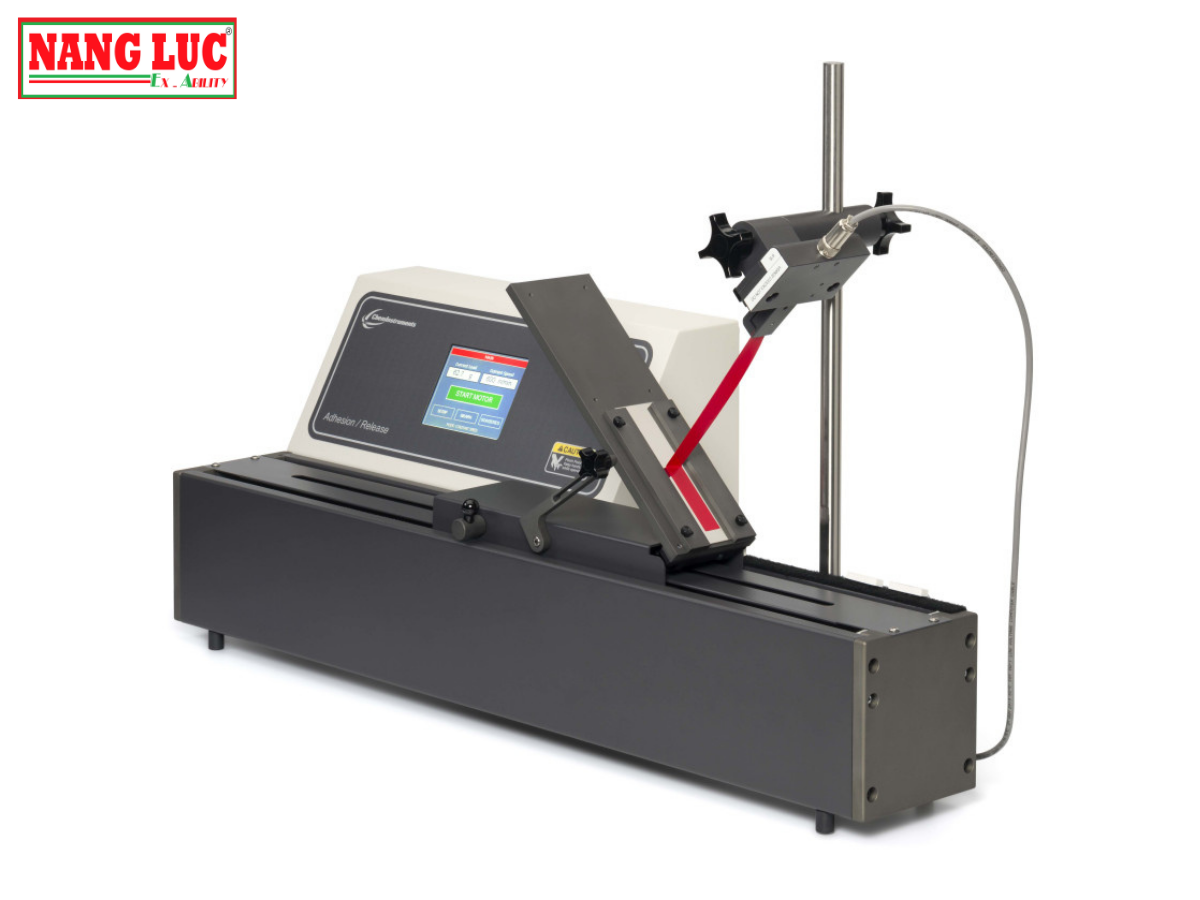

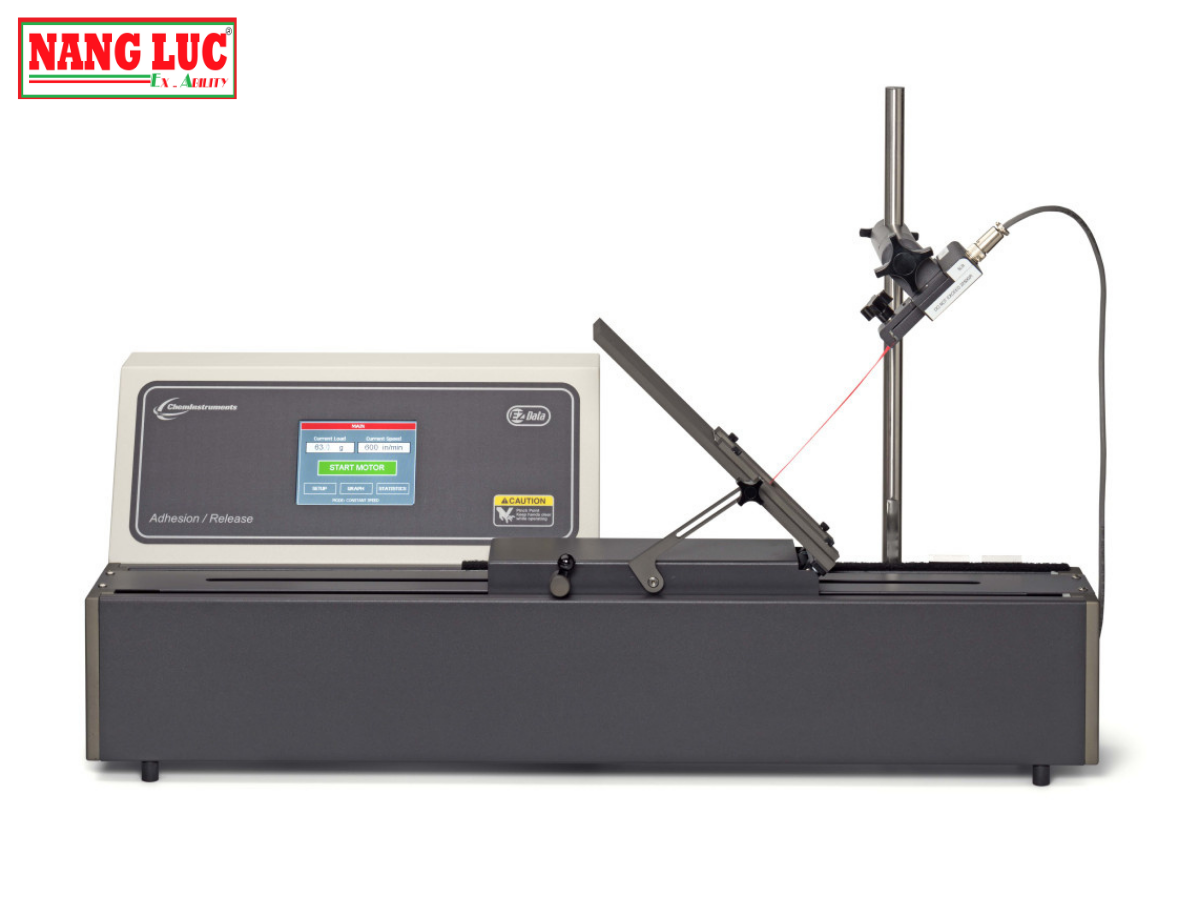

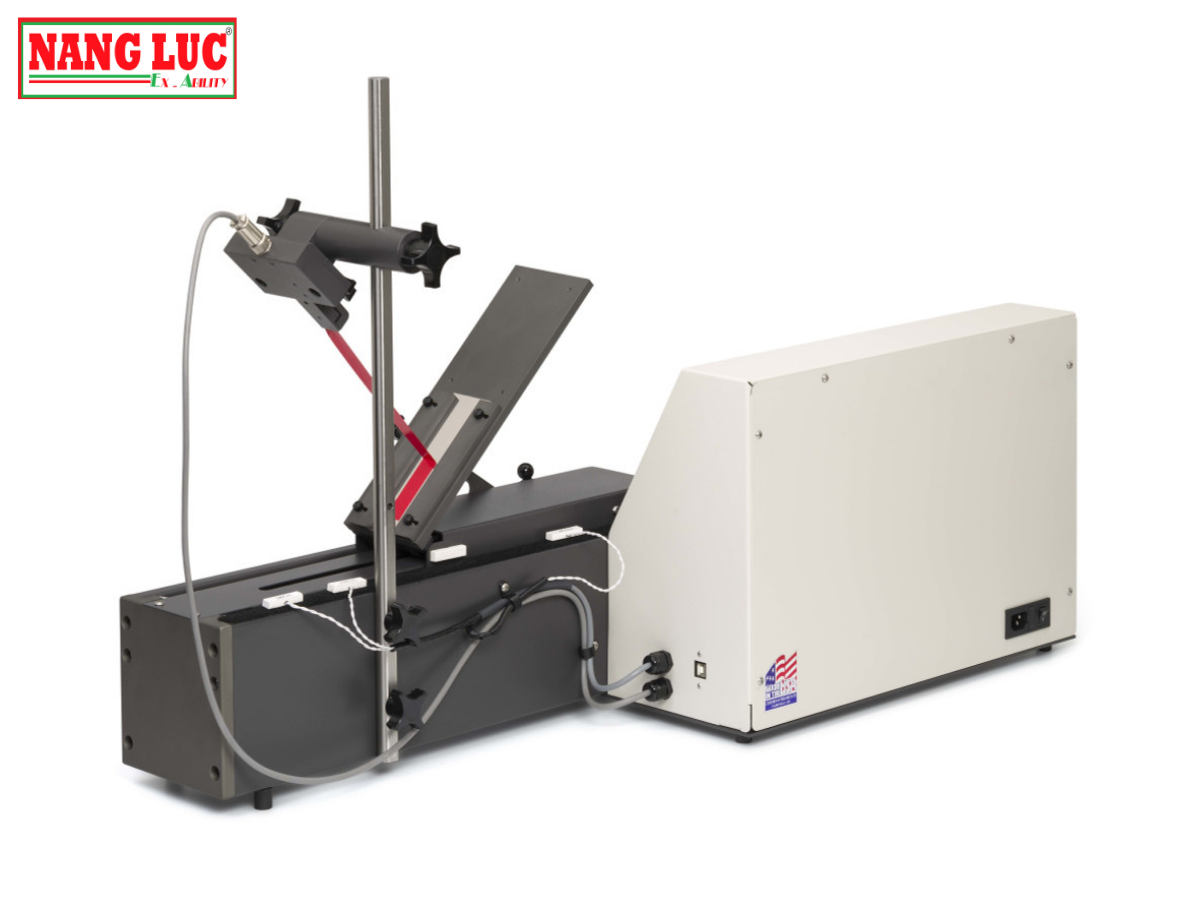

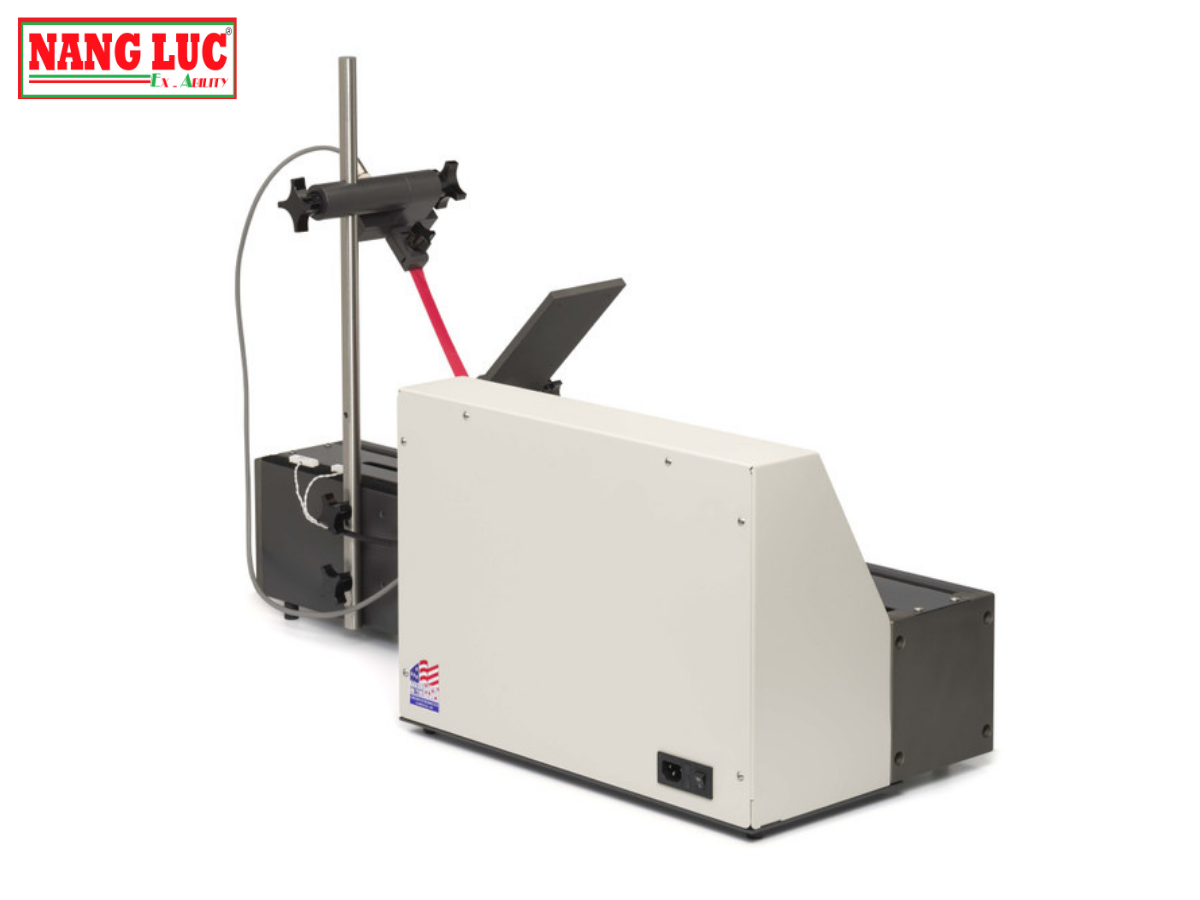

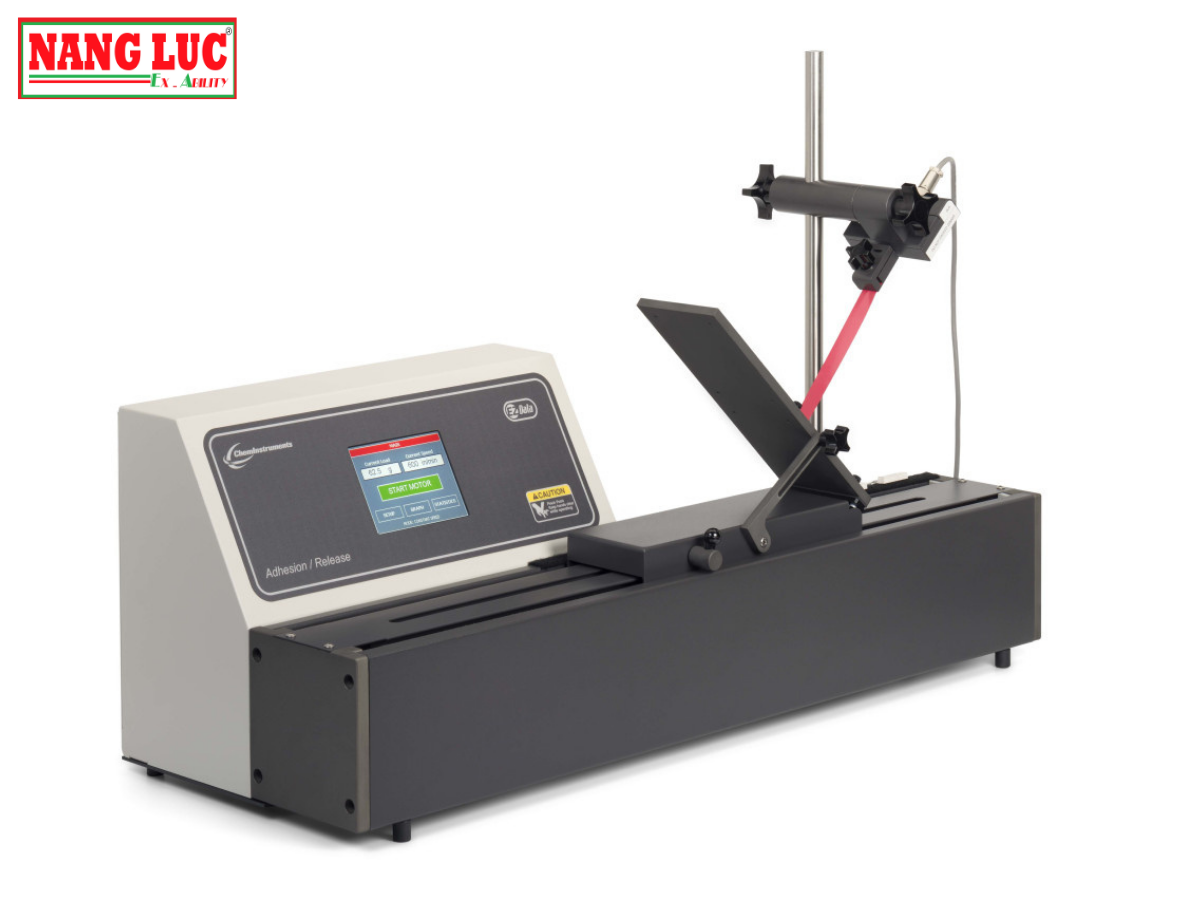

Máy Kiểm Tra Độ Bám Dính Lớp Phủ (Adhesion/Release Testing Machine) ChemInstruments Model AR-2000

AR-2000

• Rugged construction, capable of withstanding the abuse of the production environment
• Digital speed control
• Selectable speed range from 1 to 1200 ipm (3-3048 cpm)
• Test angle is selectable between 90° and 180°
• One load cell is included with the machine (2, 5, 10, or 20 pound capacities available)
• Capable of pulling up to 20 lb (9 kg) (dependent on selected lower speeds)
• Accurate to +/-0.1% of load cell range
• Test samples as short as 1/2” to as long as 12” (12-305 mm)
• Operating temperature range: 32°-150° F (0°-70° C)
• Capable of stand-alone operation with integrated touch screen display
• Data can be downloaded to EZ Data software for complete data management
• 7 inch touch screen display
• Standard input voltage – 120 VAC (60 Hz)

Data Acquisition System

• The ChemInstruments electronic data acquisition system is a state-of-the-art microprocessor controlled force measurement package that combines accuracy with ease of use. This system simultaneously controls test motion, reads the force of a test from a load cell, displays it, and stores the data in its memory.
• Samples at 400Hz, 8 samples are collected, averaged and stored as a data point. A test will generate a data point every 20ms
• Displays graph of all measured force valves upon completion of a test.
• Displays the average, high, and low measured force results immediately upon completion of a test.
• Export data by USB connection to a local PC with our EZ-Data software.
• Displays test values in grams, kilograms, ounces, pounds, or Newtons.

EZ Data

EZ Data Compatible Remote setup, operational control and enhanced data collection are all possible when coupled with our EZ Data management software. This application requires an external PC.

Calibration Service

• Calibration Service is available for this equipment. Contact us for more information.
• Load cell is easily removable for yearly calibration.

Accessories

Essential:

• Test panel – 2” x 6” (50 mm x 150 mm)
• Hand roller – 4.5 lb (2 kg)
• Specimen tape cutter – 1” (25 mm)

Non-Essential:

• EZ Data management software
• Coefficient of Friction fixture
• Chilled water testing stage
• Various test panel sizes and materials
• Custom sized hand rollers
• Various sized specimen tape cutters
• Test panel holder

Options

• Input voltage – 220 VAC (50 Hz)
• Additional load cell capacities available: 2, 5, 10, and 20 lbs
• PTSC and TLMI testing manuals
• 12″ Panel Mounts for test panels longer than 6″ and up to 12″

Methods

Some of the more popular test methods that this device is capable of performing:

• PTSC: 101 (A, B, C, D, E, F), 4, 15, 55
• ASTM: D 3330
• TLMI: L-IA1, L-IA2, L-IA3
• AFERA: 4001 R11
• FINAT: FTM 1-6, 10, 11
