Máy Kiểm Tra Độ Bám Dính Băng Keo 180 Độ ChemInstruments Model PA-2000-180
PA-2000-180
Model: PA-2000-180
Máy Kiểm Tra Độ Bám Dính Băng Keo 180 Độ ChemInstruments Model PA-2000-180
Liên hệ
Tổng quan

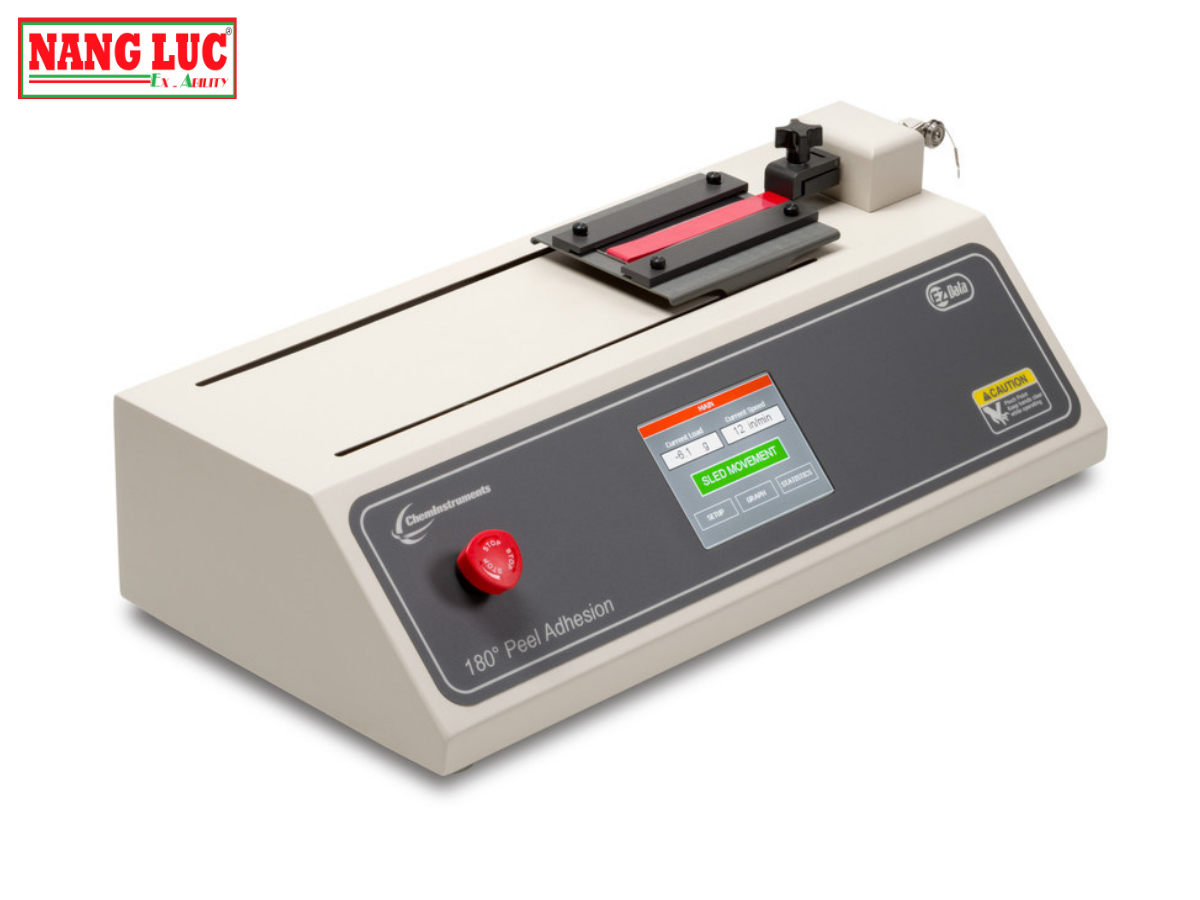

Máy Kiểm Tra Độ Bám Dính Băng Keo 180 Độ ChemInstruments Model PA-2000-180
PA-2000-180
- Rugged construction, capable of withstanding the abuse of the production environment
- Advanced digital speed control with stepper motor
- Selectable speeds of 1-24 ipm (3-60 cpm)
- Test angle is permanently set for 180° testing
- 10 pound load cell is included with the machine
- Capable of pulling up to 10 lbs (4.5 kg)
- Test samples as short as 1/2” to as long as 6” (12-150 mm)
- Designed to accept standard 2” x 6” peel panels (50 mm x 150 mm)
- Increments of 1.25 – 11.25 cm / .5-4.5 in.
- Operating temperature range 32°-122° F (0°-50° C)
- Capable of stand-alone operation with integrated digital touchscreen display
- Data can be downloaded to EZ Data software for complete data management
- Universal input voltage from 85-265 VAC (50/60 Hz)
Data Acquisition System
- The ChemInstruments electronic data acquisition system is a state-of-the-art microprocessor controlled force measurement package that combines accuracy with ease of use. This system simultaneously controls test motion, reads the force of a test from a load cell, digitally displays it, and stores the data in its memory.
- Records 400HZ, 8 samples are collected, averaged and stored as a data point. A test will generate a data point every 20ms.
- Displays the average, high, and low measured force results immediately upon completion of a test.
- Export data by USB connection to a local PC with our EZ Data software.
- Displays test values in grams, kilograms, ounces, pounds, or Newtons.
EZ Data
EZ Data Compatible Remote setup, operational control, and enhanced data collection are all possible when coupled with our EZ Data management software. This application requires an external PC.
Calibration Service
Calibration Service is available for this equipment. Contact us for more information.
Accessories
Essential:
- Test panel – 2” x 6” (50 mm x 150 mm)
- Hand roller – 4.5 lb (2 kg)
- Specimen tape cutter – 1” (25 mm)
Non-Essential:
- EZ Data management software
- Various test panel sizes and materials
- Custom sized hand rollers
- Various sized specimen tape cutters
- Test panel holder
Options
- Additional load cell capacities available: 2 and 5 pounds
- PSTC and TLMI testing manuals
- Custom speeds
Methods
Some of the more popular test methods that this device is capable of performing:
- PSTC: 101 (A, B, C, D, E, F), 4, 15, 55
- ASTM: D 3330
- TLMI: L-IA1, L-IA2, L-IA3
- AFERA: 4001 P11
- FINAT: FTM 1-6, 10, 11
Hãy liên hệ với Năng Lực Company ngay để được tư vấn chuyên sâu và nhận các ưu đãi hấp dẫn nhất thông qua hotline/zalo: 0976.299.749!
Thông số kỹ thuật
- Height: 8” (20 cm)
- Width: 23” (58 cm)
- Depth: 12” (30 cm)
- Weight: 29 lbs (13 kg)
