Thiết Bị Kiểm Tra Độ Chống Trơn Trượt Giày (Shoe Slip Resistance Tester) Gester Model GT-KB48
Liên hệ
Tổng quan

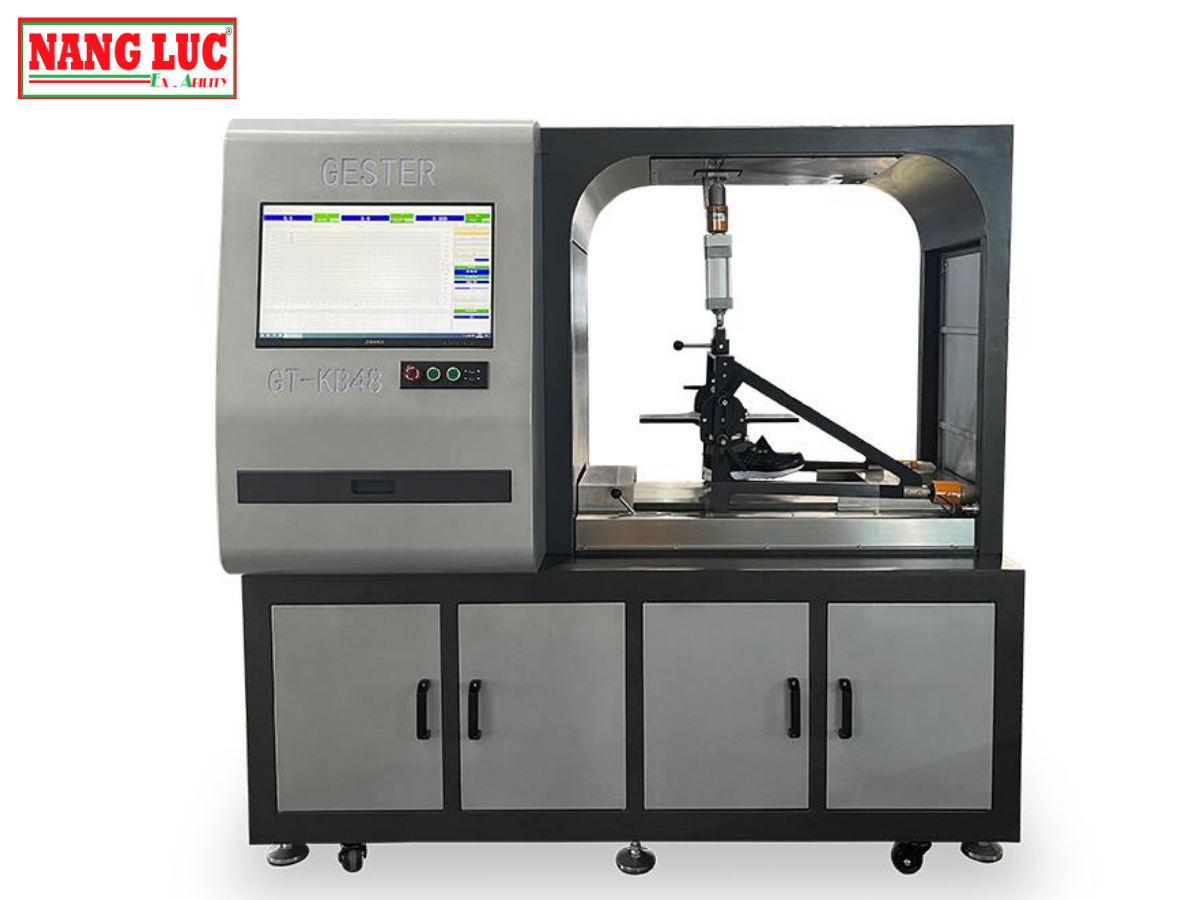

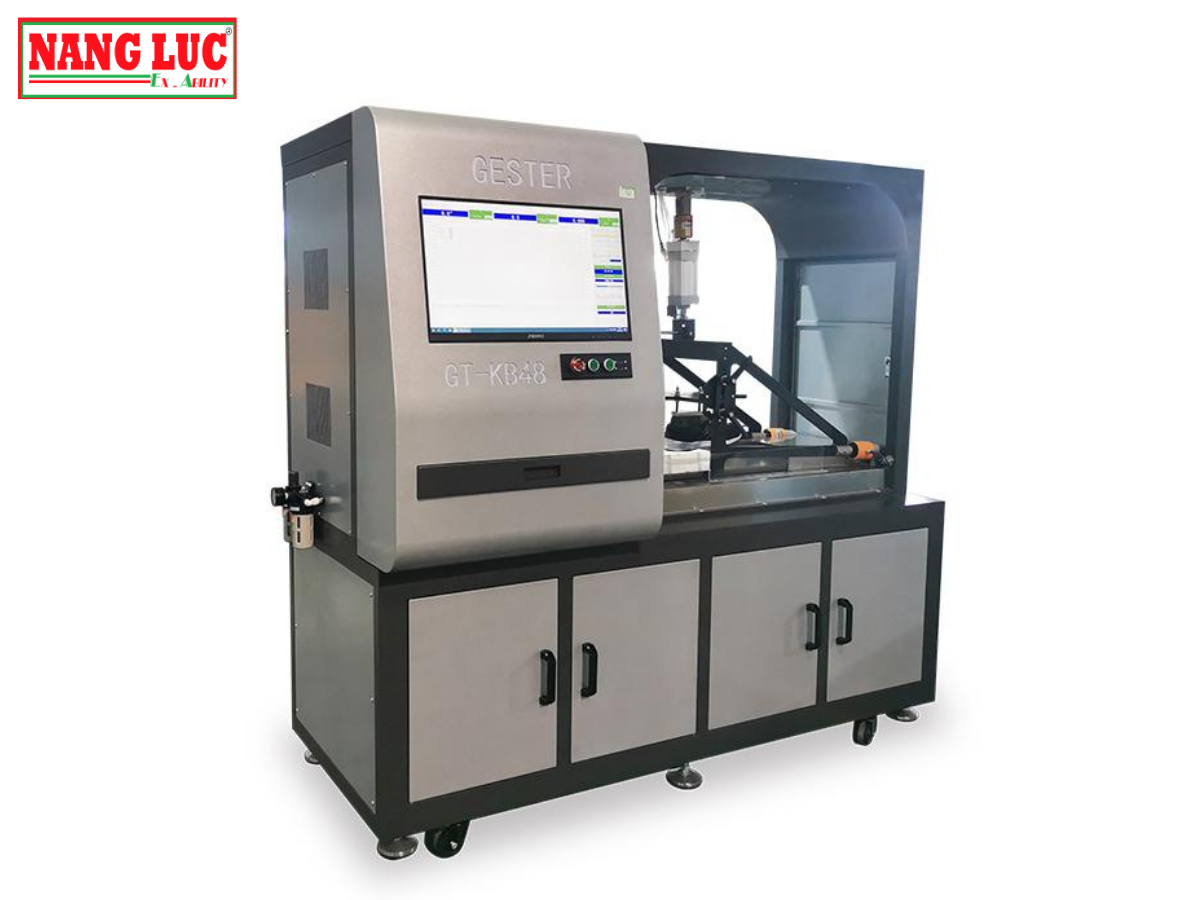

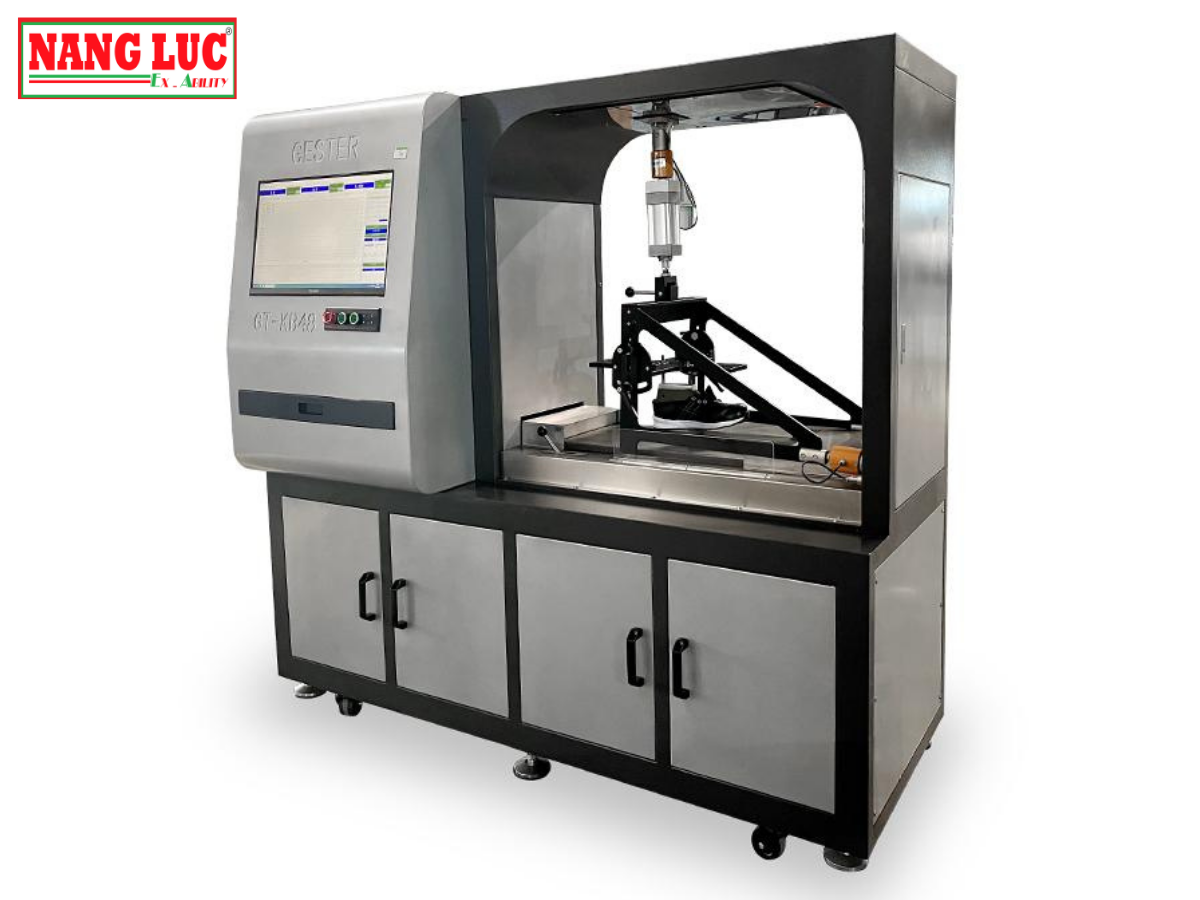

Thiết Bị Kiểm Tra Độ Chống Trơn Trượt Giày (Shoe Slip Resistance Tester) Gester Model GT-KB48
Application of GT-KB48
Slip Resistance Tester: Apply a predetermined load by different mediums like wood, PVC, ceramic tile or specified and set specified friction times and speed, which is to measure the sole friction coefficient, and then judge the slip resistance of shoes.
Standards:
ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144, ISO 24267, ISO 20344,
JIS T8101, JIS T8106, JIS T8107
Shoe Slip Resistance Tester Principle

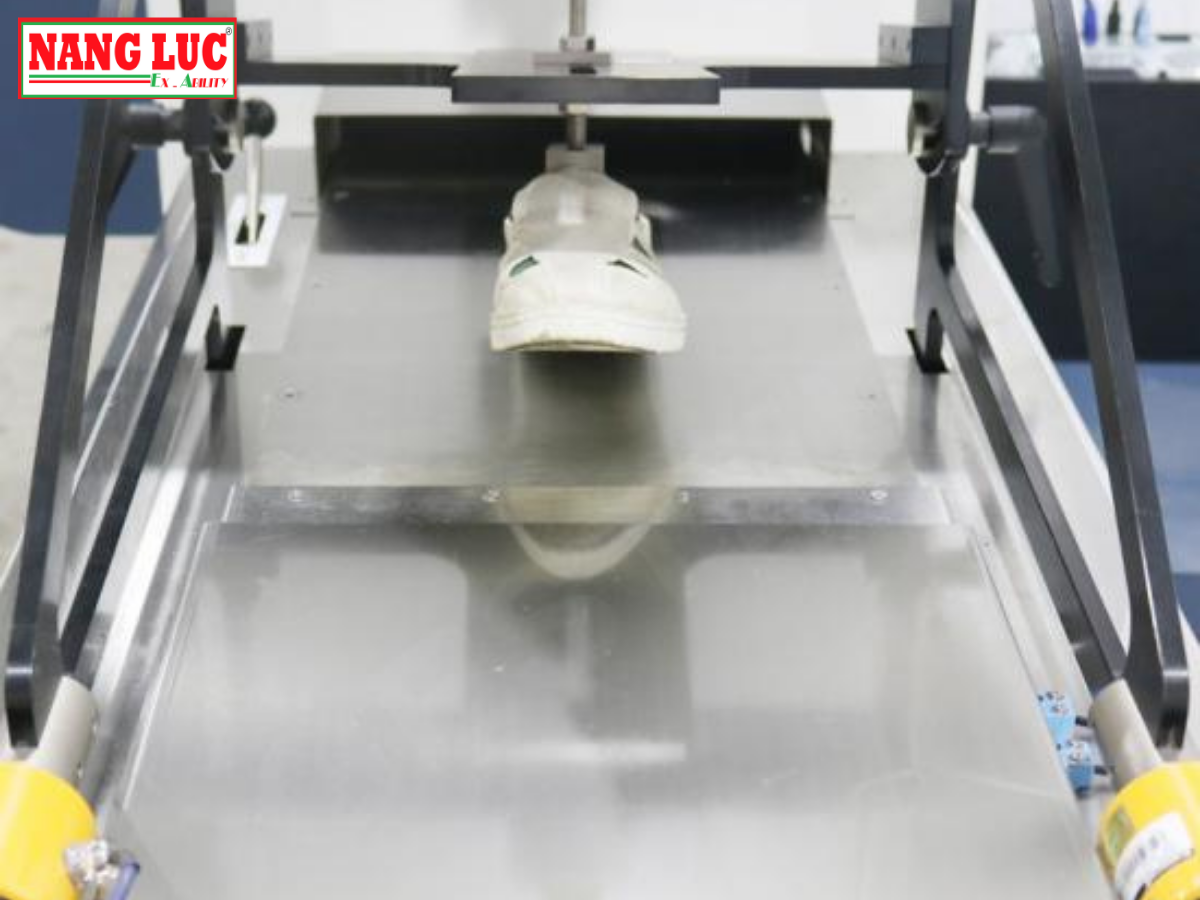

Place specimen on test stand, and glycerin as a lubricant, exert a certain load, and move test bench in horizontal direction compared with sample by lateral traction forces, to measure dynamic friction and calculate kinetic coefficient of friction.
Hãy liên hệ với Năng Lực Company ngay để được tư vấn chuyên sâu và nhận các ưu đãi hấp dẫn nhất thông qua hotline/zalo: 0976.299.749!
Thông số kỹ thuật
| Model | GT-KB48 |
| Vertical load cell range | 1000N |
| Horizontal load cell range | 1000N |
| Sliding speed | (0.3±0.03)m/s |
| Static contact time | 0.5s |
| Test normal force | 500±25N, For footwear of European size 40 (UK size 6.5) and above |
| 400±20N, For footwear of European size below 40 (UK size 6.5) | |

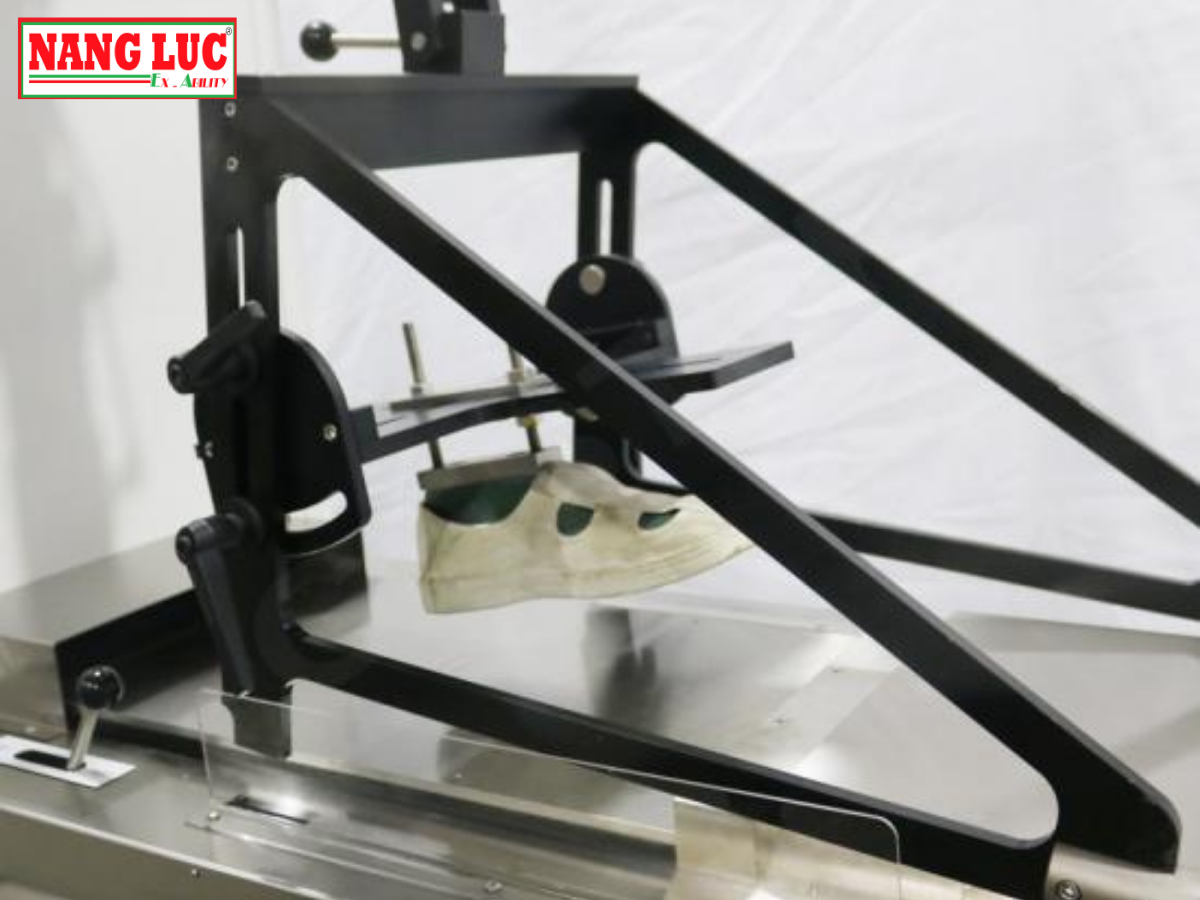

| Wedge angle gauge | 7° |
| Control method | Computer-controlled |
| Monitor | 19-inch |
| Test floor | Pressed ceramic tile floor, stainless steel plate |
| Power supply | AC 220V 50/60HZ |
| Dimensions | 190×86×172 cm |
| Weight | Approx 600 kg |
| Standards | ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144, ISO 24267 |
| Standards accessories | 2pcs | 7°Wedge angle gauge |
| 2pcs | Shoe last fixture | |
| 4pcs | Prosthetic foot fixture | |
| 1pc | 180×90×90mm calibration rubber fixture | |
| 1pc | Stainless steel plate (Already fix on the machine) | |
| 1pc | 100×70mm steel block | |
| 1pc | Power line | |
| Optional accessories | / | Pressed ceramic tile floor (500*190*10mm) |
| S96 Rubber |
